---About product

  Drum Permanent Magnetic Separator is suitable for Mine, Coal preparation plant etc. use weak wet magnetic field to sort out the strong magnetic ore, or eliminating the strong magnetic minerals mixed in nonmagnetic minerals. The magnetic field of CTS(N,B) wet drum permanent magnetic separators divide into rotary and fixed. The fixed one is mainly use in weak magnetic field to separate the fine particle strong magnetic materials, or eliminating the strong magnetic materials in the nonmagnetic ores.

---Features

1. simple structure
2. Easy-open structure gives a convenient cleaning;
3. large handling
4. magnetic intensity: 800 to 11000 Gauss
5. easy to operate
6. The number of axial magnetic can be adjusted in accordance with material characteristics;
7. easy to maintain
8. This magnetic separator is suitable for processing various bulk materials and will not blocked for its compact structure.
9. Low power
10. Also has disaggregating function for sticky and poor-fluidity powders;
11. Stainless steel machine and full-closed operation enable an easy clean;
12. This high gradient magnetic separator has optimized magnetic circuit, which offers high intensity magnetic field for better separating effect.
13. Magnetic separator working under high temperature

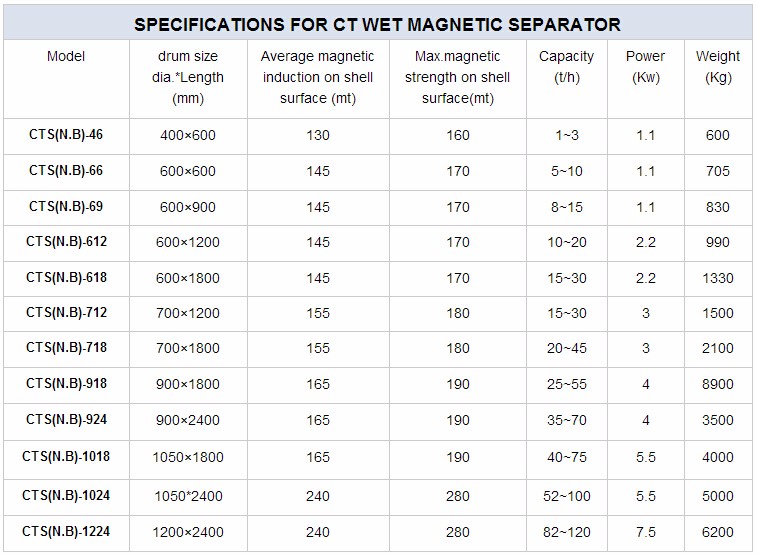

---Technical parameter

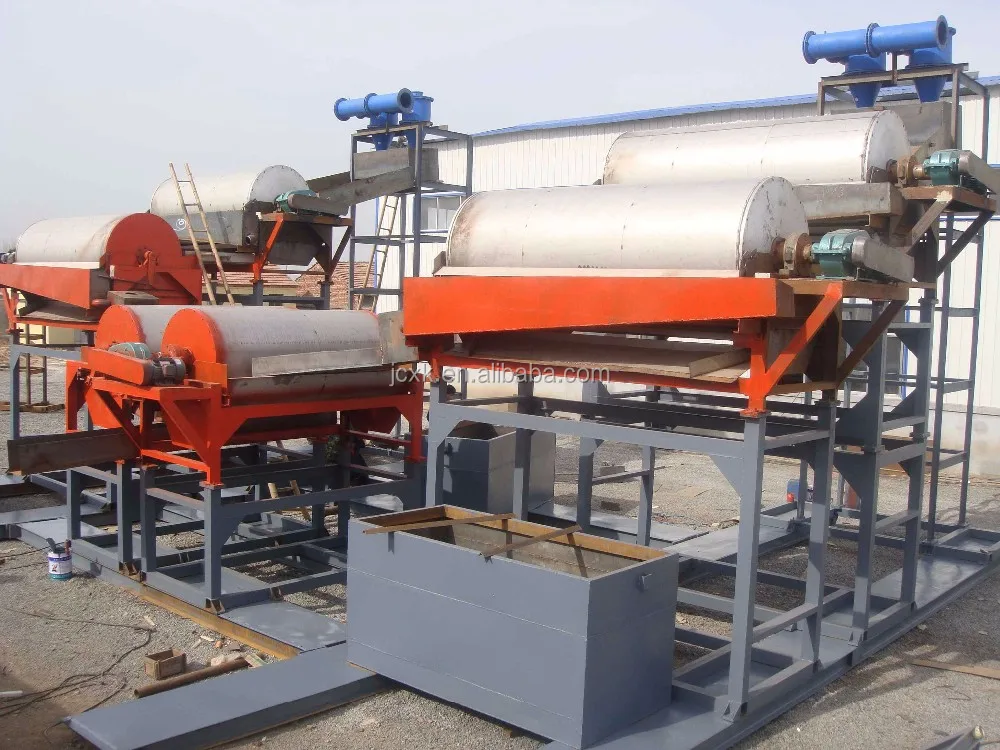

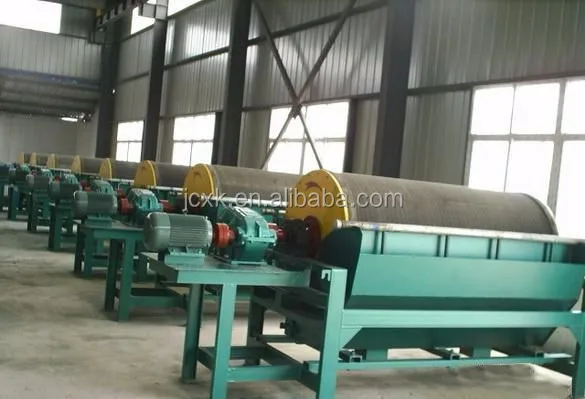

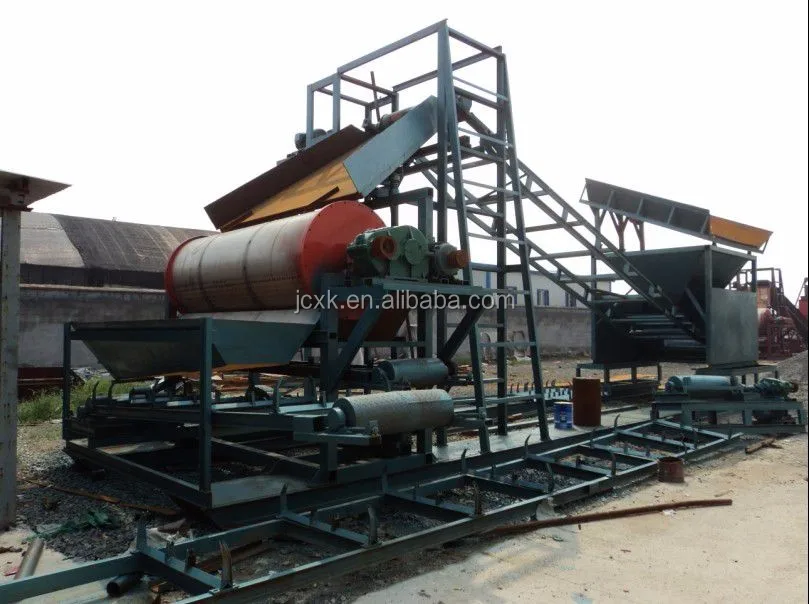

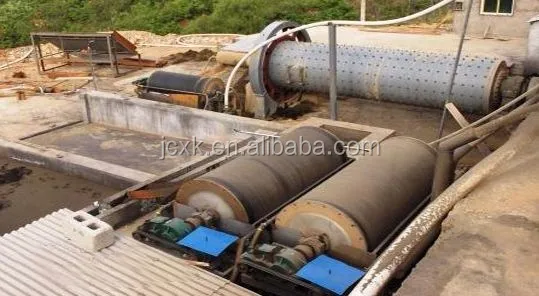

---Application picture
