---Working principle

   The machine is installed beneath the discharging opening of ore bin. Minerals fall in the ore feeding box from ore bin. When it works, via couple, electric motor drive turbine reducer to operate; the pendulum plate of chute begin the reciprocal movement through eccentric wheel on the output shaft of turbine reducer. So, the mineral feeding process is finished. The mineral feeding quantity can be controlled by adjusting eccentric wheel or regulating the revolving speed of motor.

---Advantage

   Used to beneficiation, coal, chemical engineering and other industries, to put the granular material from storage chute into those different input device via funnel. The pendulum feeder is not suitable for conveying dry powdery or too large granularity material, or it would be appeared dust pollution and discharge outlet clogging.
1. Steady vibration, safe operation, durable life.;
2. Flux can be changed and controlled;
3. The machine can be adjusted steadily, low noise, low electricity consumption;
4. Simple structure, safe operation, light weight, small volume, easy to maintenance

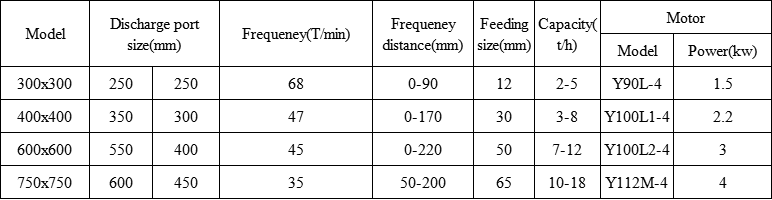

---Technical parameter

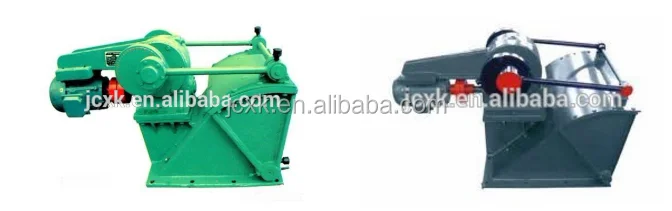

---Product picture
