---About product

   The crushing can be worked indoor, material is fed from the feeding part which is on the top of cap, for the pressing between the two disc,the material will be grinded, the crushed material will flow from the space of the grinding disc to the bottom tank.

   The machine is mainly composed of the body , base, shaft , moving disc, fixed disc, cover and hopper cover and other accessories. The power to pass through the belt pulley driven spindle rotation , so that the relative movement of the movable disc fixed disc to crush the material. The particle size can be adjusted by hand, shaft to control the space of the disc.
   Body is installed on the base, the transmission part is combined with bearing , the movable disc and belt. The station contains shaft, fixed disc, the movable disc, the inlet.

---Features

1. Fast grinding by using friction force
2. Low processing noise, convenient cleaning
3. Tight structure, good sealing performance
4. Small size, light weight, good for crushing medium hardness ore and materials.

---Application
   Disk shredder small lab crusher is used to crush various middle hard small size rocks,in the laboratory of metallurgical industry,mining,building materials ,chemical industry and Colleges scientific research etc.
   They are suitable to be operated indoors with automatic removal of dust and no pollution produced.

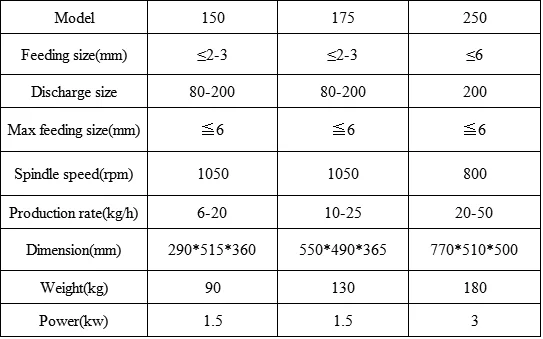

---Technical parameter

---Product pictures
