---About product
   Electric election is the power of mineral processing equipment. Its working principle is: with different conductivity of the various minerals through the electric field, due to electrostatic induction or capture the role of charged ions with different charges, and in the electric field shows different characteristics; supplemented by gravity to make it different Of the trajectory; and then by means of feeder, to achieve the purpose of separation of different conductive minerals.

---Main Features
1. High efficiency
2. Good working environment
3. Low noise
4. Long service life and low maintenance

5. Easy maintenance

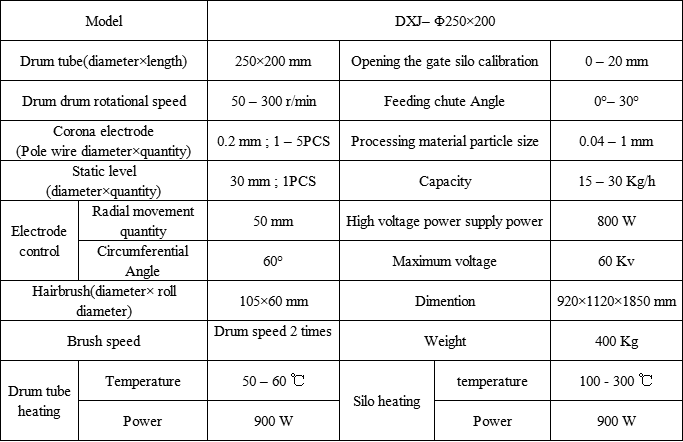

---Technial parameter

---Application

  Φ250×200 high-voltage electric separator is mainly used for sorting conductor minerals and non-conducting minerals, and can also be used for grading of the same materials instead of screening operations; and for sorting in grain processing and partial selection work. . At present, the main applications of high voltage electric separators are:
(1) Selection of colored, black and rare metal mines
For example, the separation of white tungsten and cassiterite; the separation of magnetite, hematite, chromite, manganese ore; the separation of strontium ilmenite, rutile, monazite; the sorting of gold and so on.
(2) Separation of metal minerals
For example, the sorting of quartz and feldspar; the sorting of graphite, diamond, apatite, coal and asbestos.
(3) Production of ultra-pure iron concentrate
For example, the use of electro-selection to produce high-quality iron concentrates containing Fe greater than 66% and containing SiO2 less than 3% is advantageous for reducing coke ratio, saving energy and reducing costs.
(4) Sorting of various materials: It can be classified according to the shape and particle size of the materials.
(5) Sorting of broken metal powder, fine particles and other insulating materials.
(6) Removal of non-ferrous metal materials from plastics
(7) Recovery of useful metals such as copper and aluminum from municipal solid waste
(8) Selection of grain and other cereals to remove impure hybrids
(9) Sorting of tea leaves

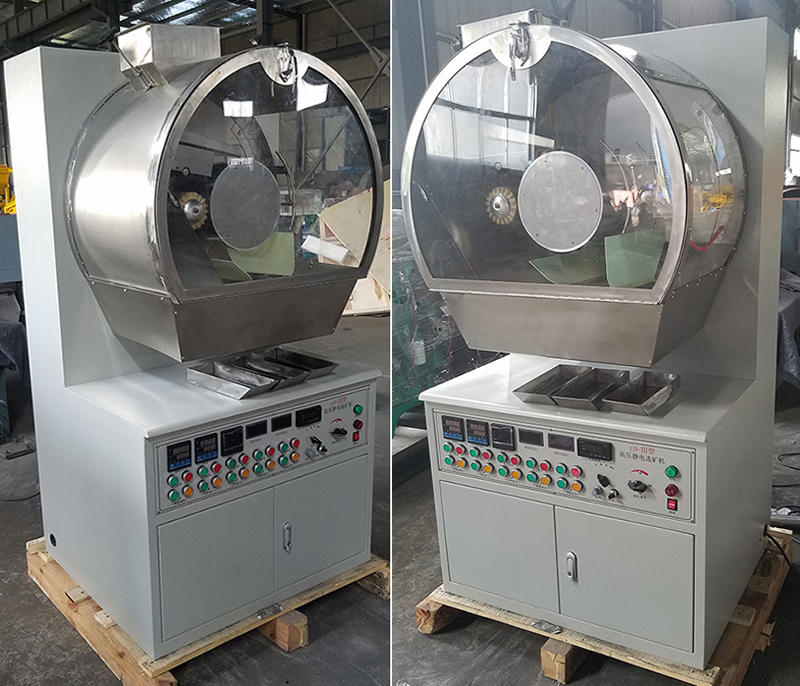

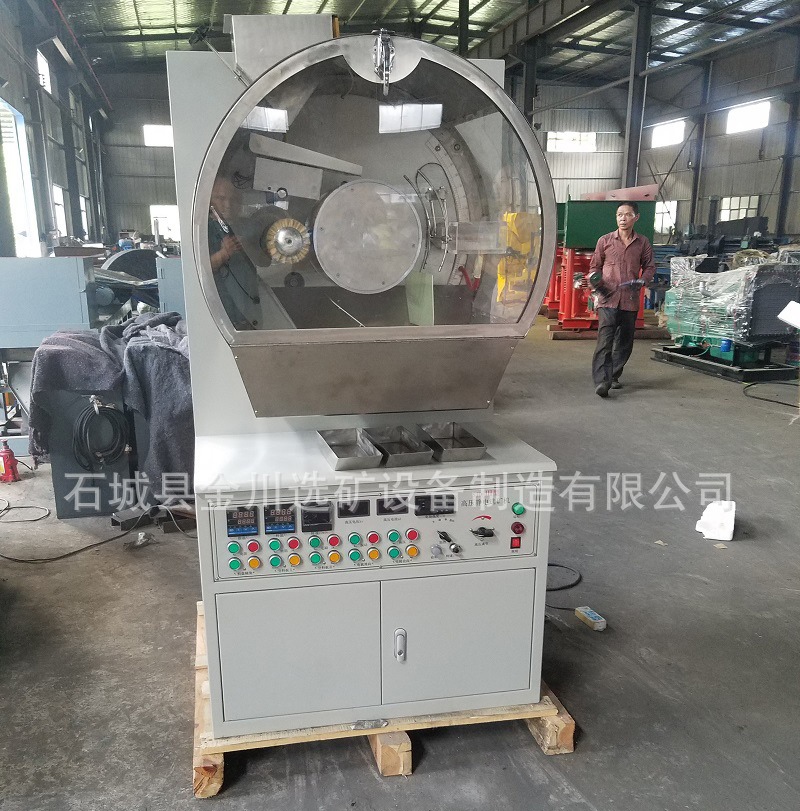

---Product pictures
