---About product

   Cone classifier, is a simple equipment for classification, desliming and concentration. Its shape is an inverted cone. The ore feeding cylinder is arranged at the center of the liquid surface, and the bottom edge of the cylinder does not enter a certain depth below the liquid surface. The pulp is fed along the tangential direction to the central cylinder and is released from the bottom edge after buffering. The slurry is radial and flows out to the surrounding overflow weir. In this process, the settling velocity is greater than the velocity of liquid flow, and the coarse particles will sink in the trough and be discharged through the bottom grit. Fine particles are injected into the overflow tank with the surface slurry. The ore feeding granularity is generally less than 2mm. The grading size is 75 μm or less.

---Application
   Mainly used in hydraulic classifier before the ore from the mud, so as to improve the classification efficiency; and also installed the concentration and dehydration of ore in grinding equipment before, in order to improve the mill feed concentration; also used in a variety of slime control to the pre sorting equipment, ore concentration and ore quantity.

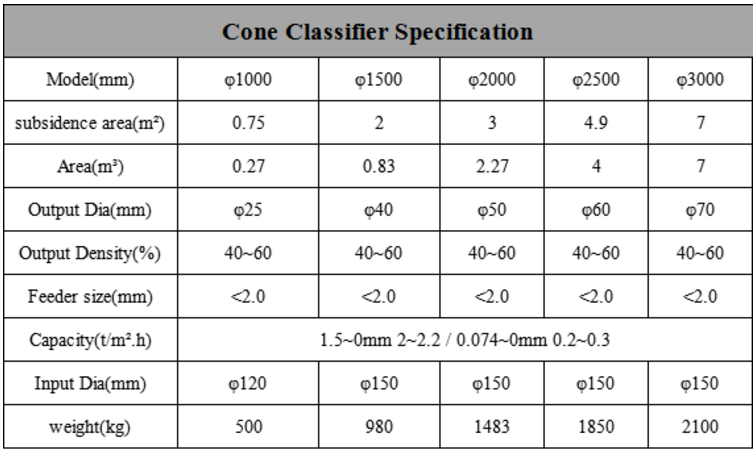

---Technical parameter

---Product pictures
