---About product

   The movement of swing screen is usually compared with simple hand screening similar to the “gold washing pan”. The product is continuously fed into the centre of the top screen, from where it spreads out evenly to the outside across the entire screening surface. The finer particles fall through the screen near the centre and the coarser ones successively towards the periphery. The material is moved in a spiral pattern with increasing acceleration of the particles the further they are from the centre, with the result that even those particles which are almost the same size as the screen mesh are screened.

---Application
   Chemical industry: resin, pigment, industrial medicine, cosmetic, coatings, Chinese medicine power.
   Food industry: sugar powder, starch, salt, rice noodles, milk powder, soybean milk, egg powder, sauce, syrup.
   Metal, metallurgy mining industry: aluminum powder, ceruse, copper powder, ore alloy powder, alumina, heavy calcium carbonate, quartz. Social pollution disposed; disposed oil, disposed water, disposed dye waste water, assistant detergent, active carbon.

---Features

1.Up to 5 times outlet compared with common sieving machine.
2.Stable screen motion even under full load.
3.Tumbling movement indefinitely adjustable, resulting in precise control of residence time on the screen,capacity and screening efficiency can be coordinated and optimized.
4.Screen motion is recordable, therefore the optimal operating data are reproducible at any time and result in constant product quality.
5.Product specific mesh cleaning systems.
6.Quick access to the screen inserts.
7.Modular design permits various machine modifications.

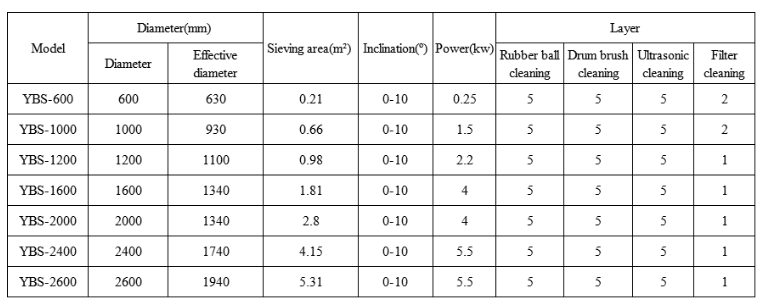

---Technical parameter

---Product  pictures
