---About product

   Dewatering screen is driven by two vibrating motors, which makes the screen sieve move to-and-fro on line to achieve the filtering purpose.With the vibration of the screen, the concentrated tailings materials are continuously threw up and down on the screen, the materials are loosen and crashed to the sieve, the small size materials are filtered away from the sieve holes. Finally it reaches the aim of classifying, dehydrating and desliming.

---Application
Dewatering screen can be widely used in discharging dried tailings, sand washing plant, fine mineral dewatering, chip removing, carbon-in-pulp separation etc. Screen mesh can be various type like polyurethane, nylon, stainless steel wire, manganese steel wire, industrial filter cloth, etc.

---Features
1. High efficiency, strong vibrating force and large capacity.
2. Simple structure and easy operation and maintenance.
3. 45° angle install increases the dewatering area.
4. Vibrating frequency is adjustable to meet different ores.
5. Torsional shear type high strength bolts are used between side plates and beam, no weld gap that avoid side plates cracking during vibrating.
6. Polyurethane screen with better elasticity and less blocks. The PU side-push plates protect the equipment from the rushing material and guard the long life of the whole device.

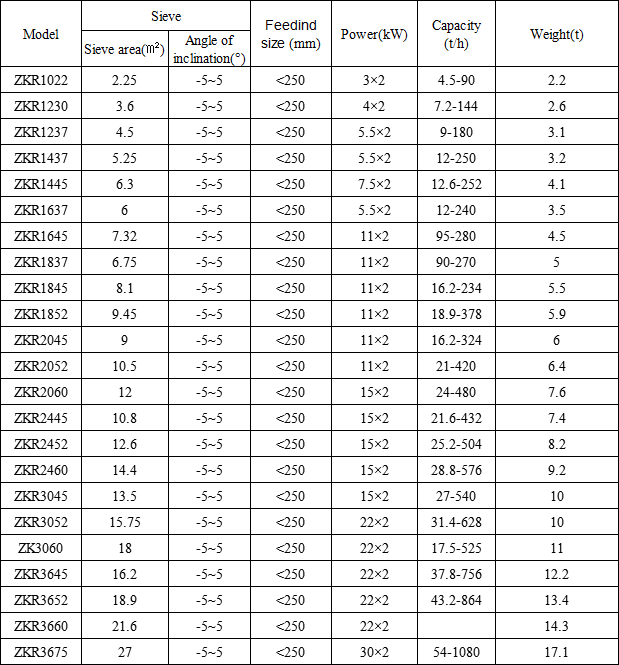

---Technical parameter

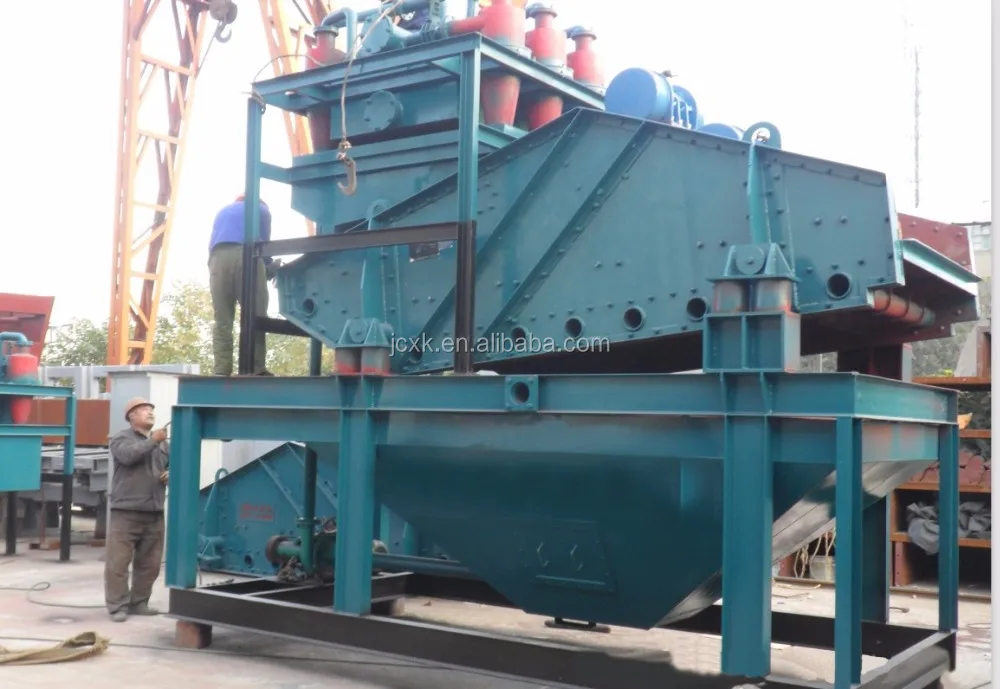

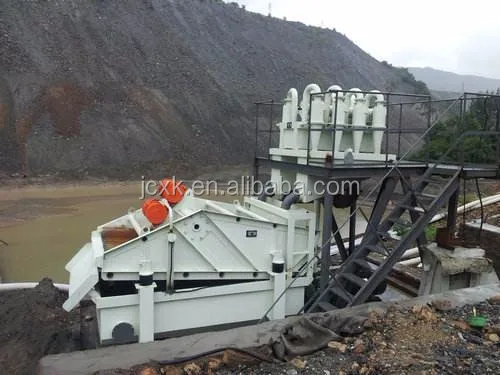

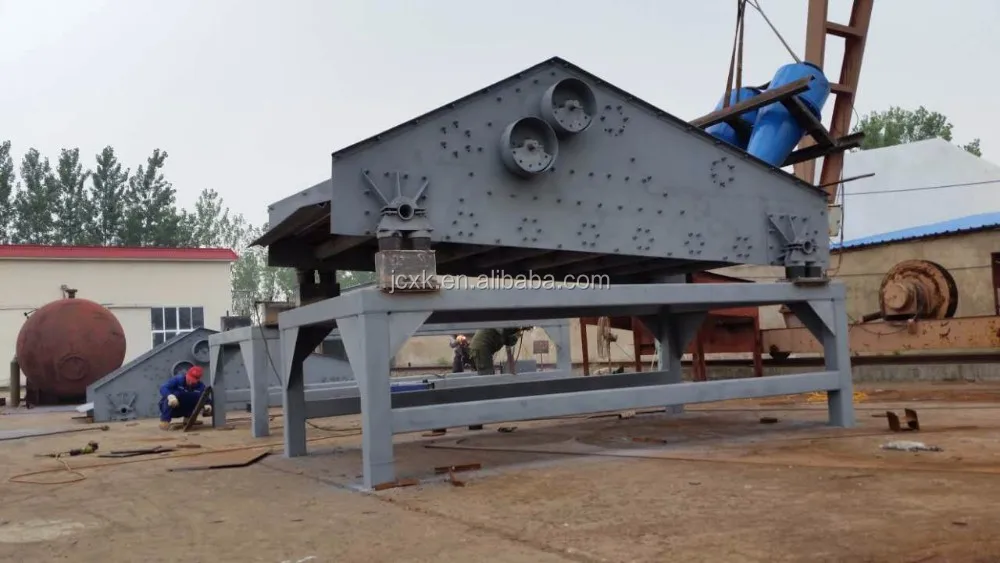

---Product pictures
