---About product

  Floatation Separator is usually a continuous process by a few tanks, dozens of tank flotation machine connection, including roughing, scavenging, concentration operations. The use of flotation machine should meet the following requirements about equipment and processes, varies parts are complete and intact. Machines function normally and achieve the required aeration rate. Motor drives impeller rotating through belt and pulley. On the one hand, the machine inhaled enough air mixed with slurry, on the other hand, stirring the mixture of pulp and pharmaceutical. At the same time, refinement of the bubble, the particles adhere to the bubbles on the role of reagents and float to the slurry surface. So it the formation of mineralized froth layer and scraped by the scraper.

---Main Features
1. Air charging system is mainly composed by the inlet air pipe;
2. The flotation machine has large inhaling capacity and low energy consumption;
3. Complete flotation circuit with inhaling air and pulp, no auxiliaries are needed;
4. Reasonable circulation of pulp decreases coarse sand sedimentation.
---Application
   Flotation cell can be often seen in ore dressing factory, which is applied for sorting non-metallic material, and which is one important flotation plant. And what's more, flotation concentrator can be used for sorting the metal material including copper, lead and gold. And flotation cell is also being called flotation separator, flotation machine and flotation-cell.

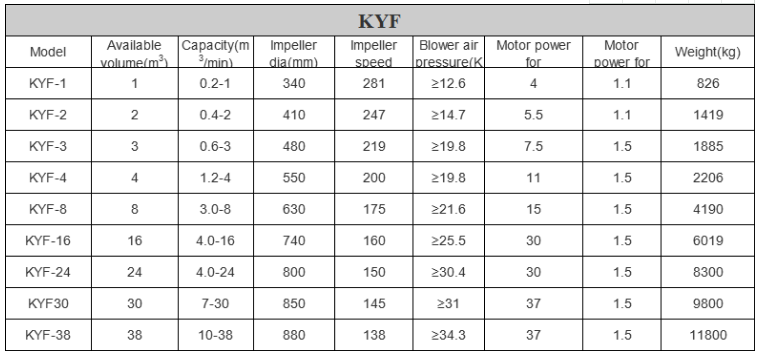

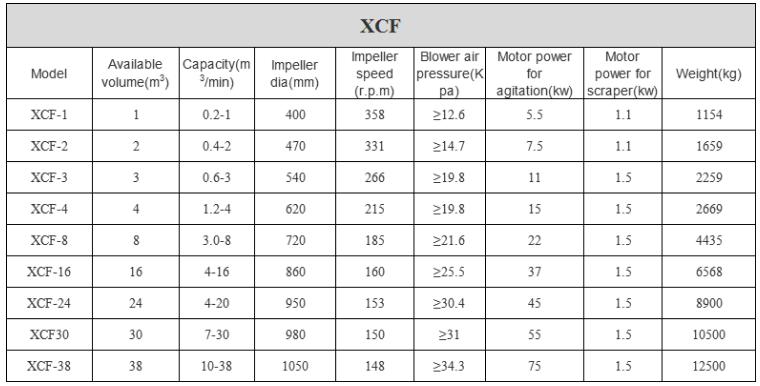

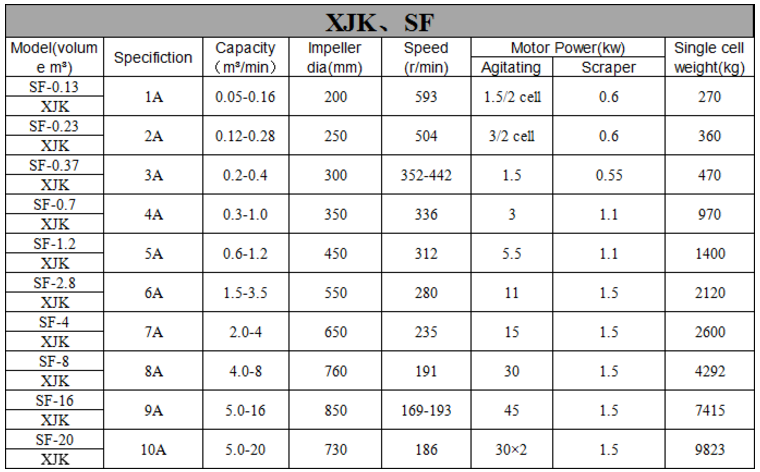

---Technical parameter

---Product picture
