---About product

   Bigger Diameter of impeller, strong agitating capacity for the slurry and medica.Bigger linear velocity of impeller, strong agitating capacity for the slurry and medicament.
Umbrella-shaped impeller strengthens the agitation and circulation of the slurry and medicament.A guide flow device is equipped in the tank. Strong negative pressure compress in limited room which increase the suction ability and the circulating ability of slurry and medicament.The umbrella-shaped impeller passes pressure downwards.
Further increase the suction ability and circulating ability. There is a sprayer at the lower part of the guide flow device. The circulating ability of slurry and medicament is further strengthening.
---Working principle

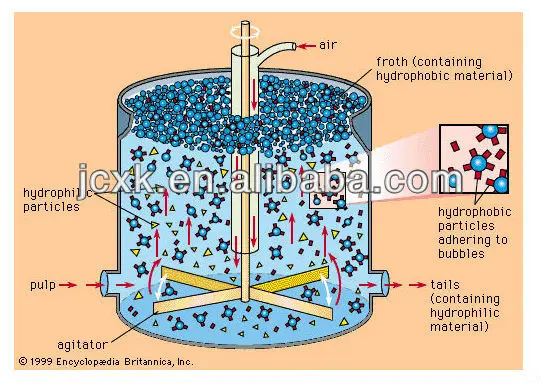

   The high speed rotation of impellers can stir ore pulps, which cause ore particles and reagents fully contact.

---Main features
1.Product advantage
2.Powerful agitating capability.
3.Ores and reagents can fully contact
4.Powerful stirring capability.

---Application
   It is used for the preliminary agitation of ore pulp before the floatation beneficiation.

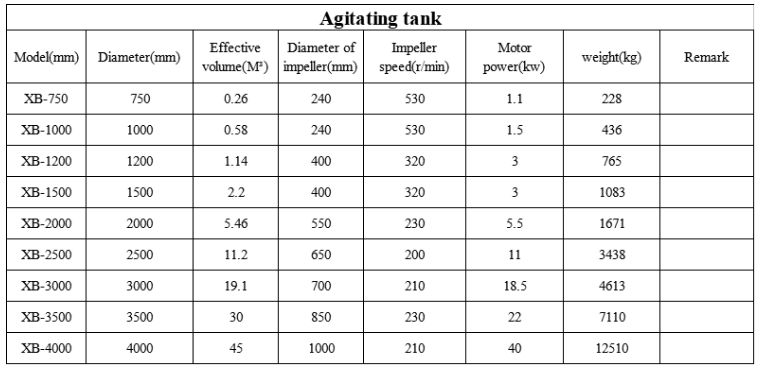

---Technical parameter

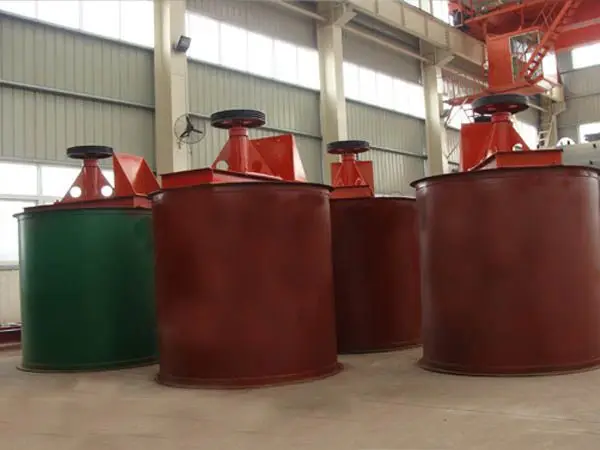

---Product picture
