XMGB work index ball mill for lab
Update: 2018/5/11 View:
- Brand: 金川
- Type: Series
Introduction
---About product
XMGQ Work Index Ball Mill is mainly used to determine the work index of grinding of ores , slag and other materials. The product is produced by the only enterprise designated by the former Ministry of Geology and Mineral Resources, in compliance with the Industrial standards.
---Stractures
The liner plate for mill body is on the whole in the shape of wave. It is fixed at one end of the drum with sunk screws to feed and discharge materials. If a tilting angle is needed during the grinding process of the mill, lift the bolt of turning handle. At this time, pull the positing lock pin and put it into the corresponding arc groove. Turn the handle and adjustment can be made.
---Working priciple
As with the common ball mill, materials of given size and weight and steel balls of certain size and number are put into ball mill. Dry grinding proceeds at the rated rotation speed to screen and weigh products repeatedly. The grinding work index （kwh/t）is obtained by calculation.
---Electrical Parts and Control
The control parts of this machine is composed of digital display, automatic counting, automatic shut-down and other circuits. The operation methods are as follows:
---Switch on the machine, and the stop button “power indicator” light.
---Pre-setting the rotation speed needed by the experiment should simply dial the dip switch to the desired rotation speed.
---Press “Start button”, and the rod mill begins operating and automatic counting, the “operating instructions” button light. When the preset rotation speed is reached, which is the same with the counter displayed number, the rod mill stops.
---Press “stop button” when the machine need to be stopped during rotating.

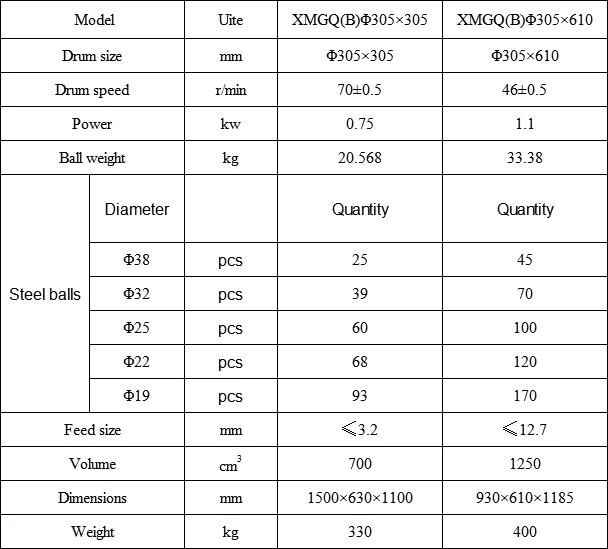

---Technical parameter
---Product pictures
