---Working principle
   A belt conveyor consists of two end rollers and a closed belt. The roller that drives the belt rotates is called the drive drum (drive roller); the other one, which is only to change the direction of the belt movement, is called the steering cylinder. The driving roller is driven by the motor through a reducer, and the conveyor belt is driven by the friction between the driving roller and the conveyor belt. Drive rollers are generally installed at the discharge end to increase traction and drag. The material is fed from the feeding end and falls on the rotating conveyor belt, and is transported to the unloading end by friction of the conveyor belt to unload.
---Application

   This product can be used for horizontal or tilted transportation, widely used in metallurgy, mining, coal, hydropower, transportation, chemical industry, building materials, light industry, food, electricity, ports, ships and other departments, the use is very convenient, widely used in various industrial enterprise modernization, such as underground tunnels, mine and ground transportation system opencast mining and ore dressing plant in mine field. According to the transport process requirements, can be single transmission, but also can be composed of multiple or other transport equipment with horizontal or inclined delivery system to meet the needs of different layout types of lines.

---Features
1. With speed conveyor belt speed, with two scattered shipment and packages shipped to the different demands, improve the equipment utilization ability;
2. Large and small go round all USES solid rubber_tyred, prevent crushed grain and warehouse ground;
3. Large and small go round are equipped with ball bearing, small go round automatic steering function with the mobile equipment, guarantee of deft and agile;
4. Rack with welding truss structure in the package shipment concentrated load, next of sufficient strength and good rigidity.

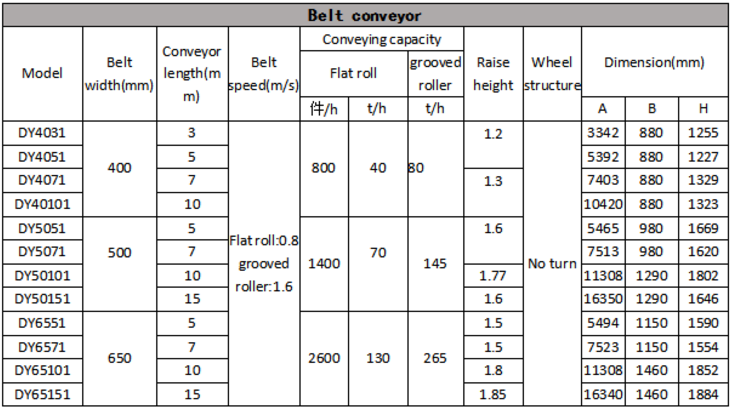

---Technical parameter

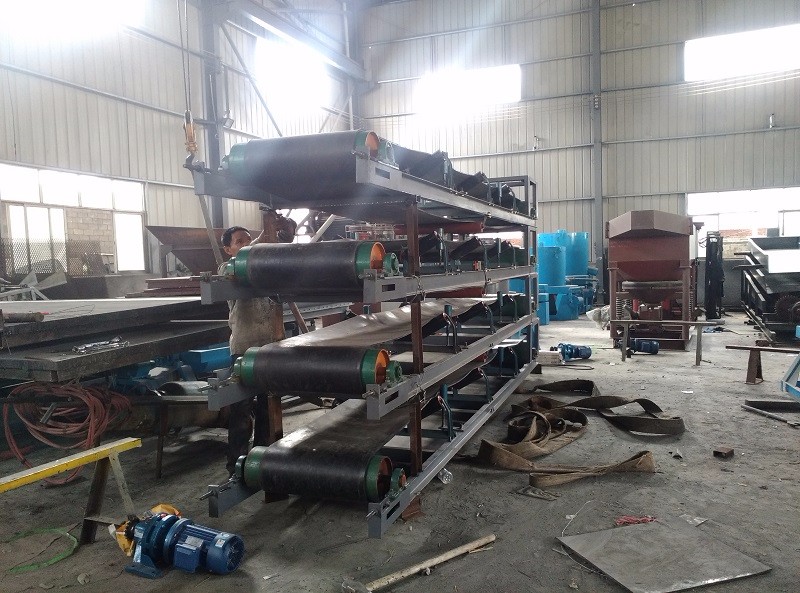

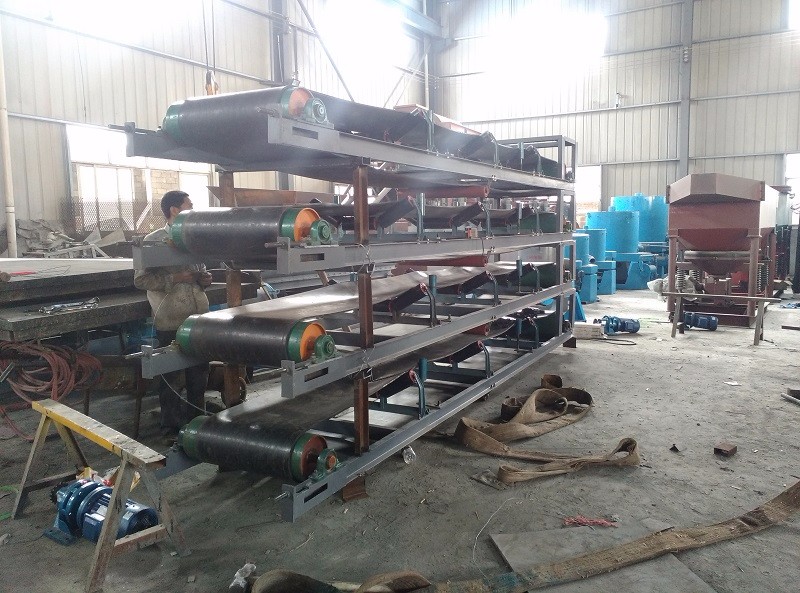

---Product pictures
